Brief:
·Main applied by pharmacy,foodstuff ,chemical to dry liquid into powders.
·Machine materials adopt stainless steel.Mainly consists of heat source,atomizer,sprayer,cyclone separator..
Air
heated by electric heater,filtrated and inflow to the air distributor
that in the top of the machine,heated air helically flow into dry
working room uniformly while the liquid materials sprayed from the
atomizer from top tower,the sprayed vaporous materials touch with the
heated air then be dried into powders instantly.

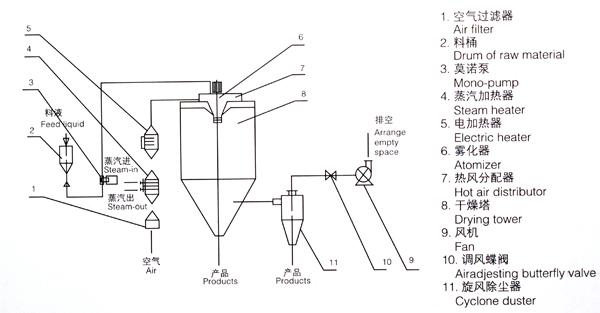

Sketch Of Flow Chart:

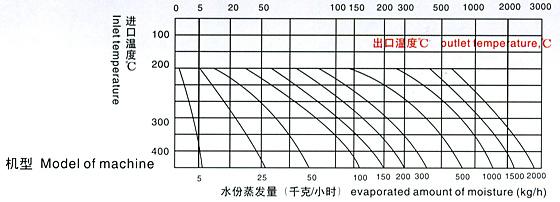

Curve Of Moisture Evaporation:

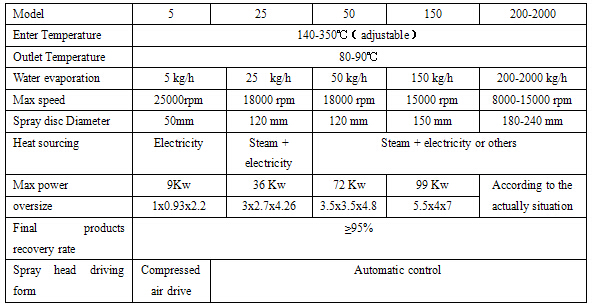

Parameter:
Note:
the evaporated amount of moisture is depending on characteristics of
raw material an inlet and outlet temperature of hot air. When outlet
temperature is 90, its curve of moisture evaporation is shown in above
Fig.(for reference when you choose Model). With renew of products
unceasingly, the relevant parameters will be changed, don't announce is
advance, pardon!)
